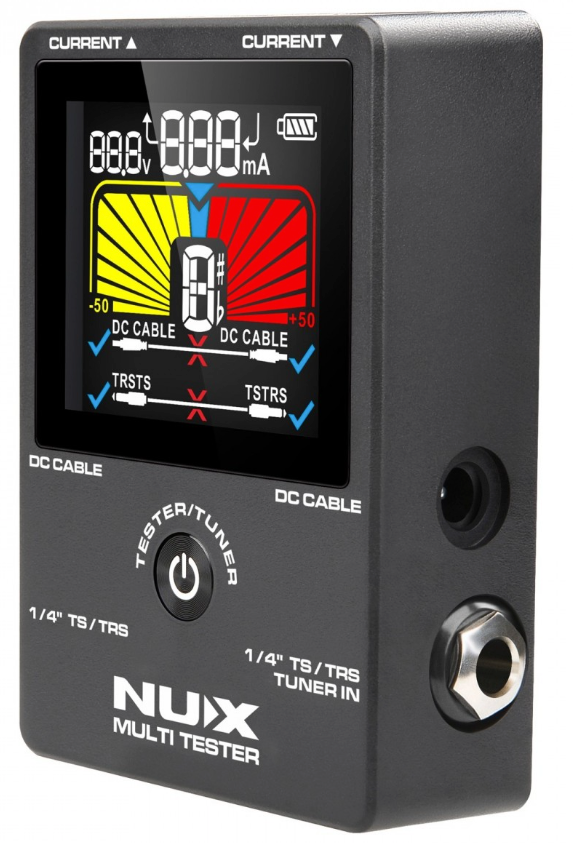

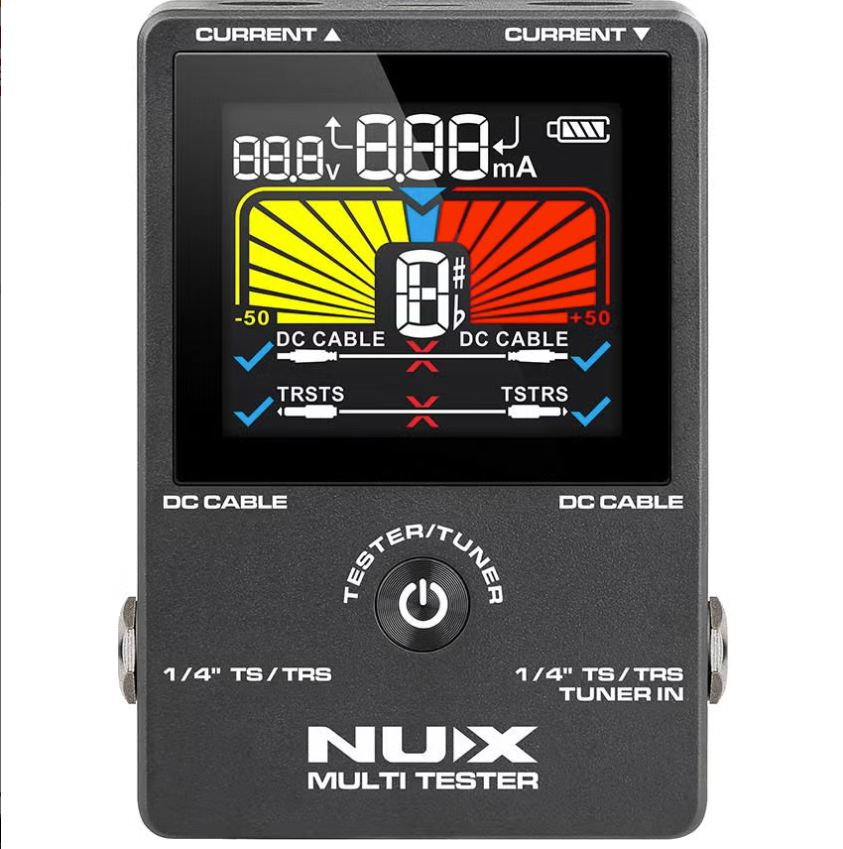

Nux NMT-1 4-in-1 multi tester

• Chromatic Tuner
• Measurement and testing of audio cables with 6.3mm (1/4") TS and TRS jacks
• Measurement and testing of DC power cables with 5.5 x 2.1 mm barrel connector
• Measurement of voltage and power for floor effect devices
• Built-in lithium-ion battery
• Rechargeable via USB-C

Connections

• Inputs and outputs: 2x 6.3 mm (1/4") jacks
• 2 Lateral DC barrel connectors 5.5 x 2.1 mm (centre negative) for testing power cables
• 2 Upper DC barrel connectors 5.5 x 2.1 mm (centre negative) for measuring voltage (V) and power (mA) for floor effect devices
• Designed for 9 to 28 volts DC
• Dimensions: 95 x 71 x 30 mm
• Weight: 125 g
