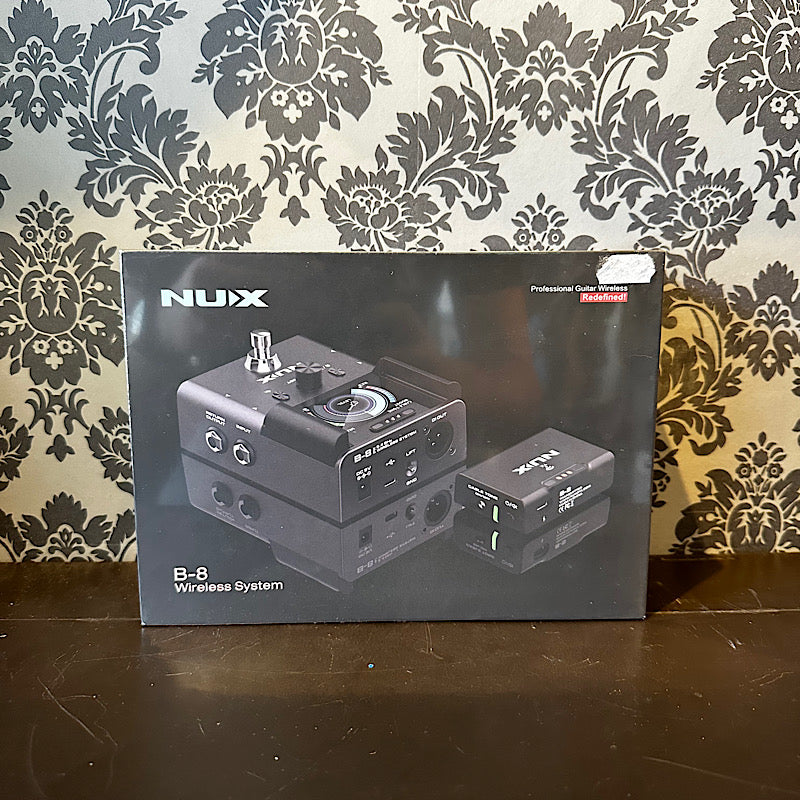

Nux B-8 Wireless Guitar System

Wireless System for Electric Guitar and Electric Bass

• Compact transmitter + pedal receiver
• WiFi 2.4 GHz
• Built-in tuner or boost functions activated via the receiver footswitch
• Built-in effects loop on the pedalboard receiver for buffered pedal signal paths
• Balanced XLR D.I. output on the receiver for direct connection to a mixing desk/audio interface
• Designed for electric guitars, electric basses, electro-acoustic guitars, electric ukuleles, etc.
• Optional cable tone function that provides the warm sound of a jack cable
• Automatic pairing of transmitter and receiver in just a few seconds
• Transmitter can be charged by placing it on the receiver screen (or via USB-C)
• Tuning modes: chromatic, standard guitar, guitar with compensation and bass
• Tuning range: F#0 to C8- Tuning accuracy: ±1 hundredth of a semitone
• 2.4 GHz high-definition 24 bit / 48 kHz digital audio transmission
• Frequency response: 20 - 20 Hz
• Booster: 0 dB - 12 dB
• Output level adjustment range: Mute, -64 to 0 dB
• Dynamic range: 122 dB
• Latency : 2.5 ms (in low-latency mode for short ranges) to 8.7 ms (in stable mode for short ranges)
• Indoor range : 30 to 60 m (depending on environment)
• Outdoor range : 20 to 50 m (depending on environment)
• Transmitter battery : Li-Po 3.7 V / 500 mAh
• Battery life: approx. 6.5 hours
• Receiver power supply : 7 to 12 V / 500 mA mini (9V adapter supplied)
• Audio cable: 6.35 mm jack to 3.5 mm mini jack (sealed) supplied
• USB-C cable supplied (charging the transmitter / updating the firmware)
• Weight transmitter: 63 g
• Receiver dimensions (W x D x H): 72.5 x 49.3 x 23 mm
• Weight of the receiver: 500 g
• Receiver dimensions (W x D x H): 122 x 95 x 60 mm
