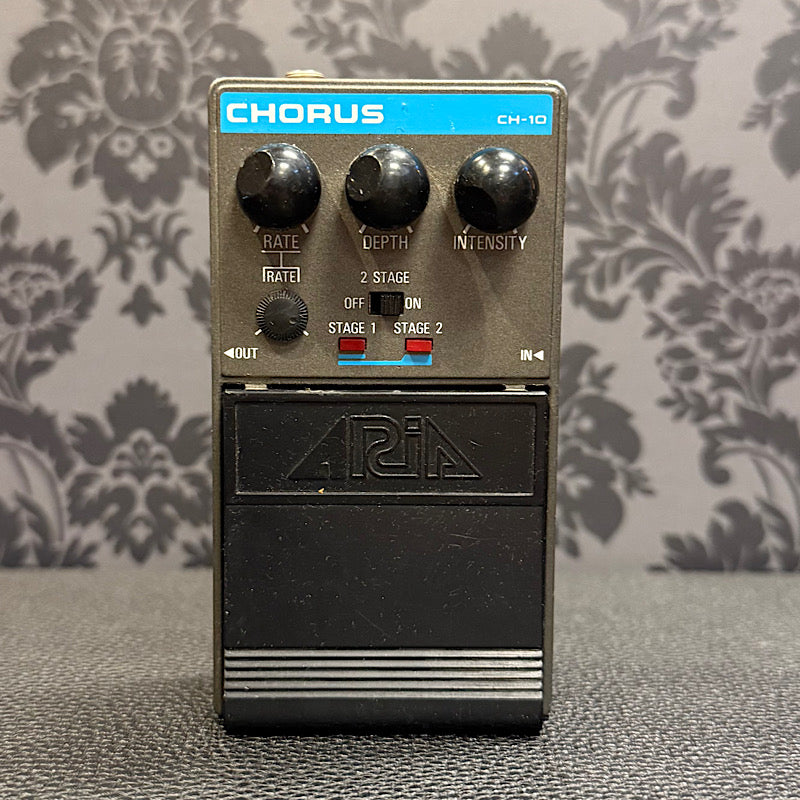

This vintage 80's dual-stage analog chorus offering two selectable modulation speeds for enhanced live flexibility. Stage 1 delivers classic chorus textures with adjustable Rate and Depth, while Stage 2 engages a second, independently set modulation speed via footswitch hold. The result is smooth, dimensional chorus with the ability to shift into faster or more dramatic modulation in real time-ideal for transitioning between subtle and pronounced effects during a performance.
Controls:
Rate (Stage 1): Sets the modulation speed for the primary chorus effect.
2nd Rate (Stage 2): Adjusts the speed for Stage 2, activated by holding the footswitch.
Depth: Controls the modulation intensity and stereo spread.

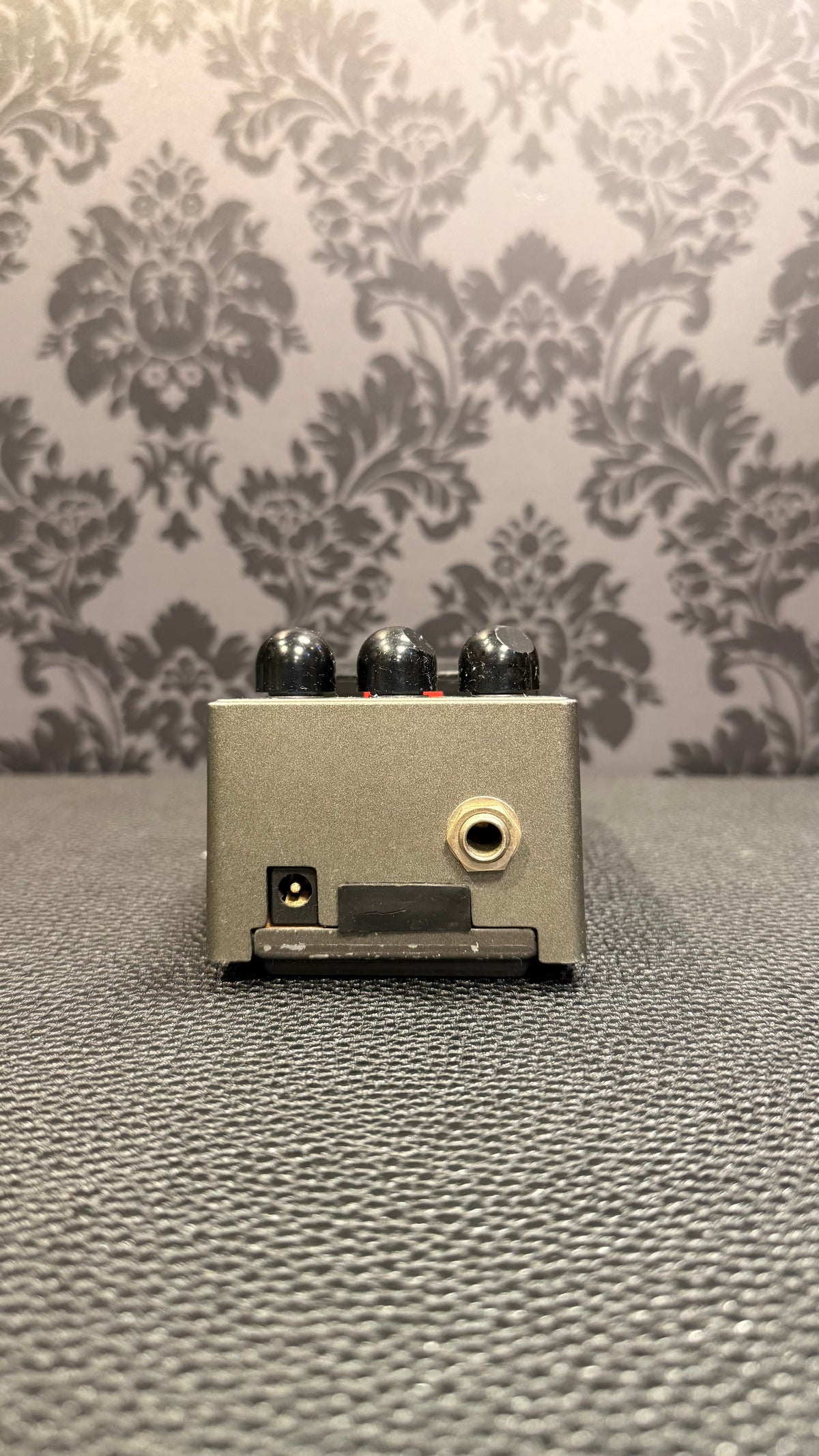

Connections:
Input jack
Output jack
Inverse output jack (for phase-inverted stereo operation)
AC adaptor jack (9V DC)
Specifications:
Power supply: 9V DC
Current draw: 7 mA
Dimensions: 74 mm (W) x 52 mm (H) x 124 mm (D)
Weight: 430 g
Highlights:
Dual-speed chorus with real-time footswitch selection
Independent Rate control for Stage 2 modulation
Inverse stereo output for rich, spatial chorus effects
