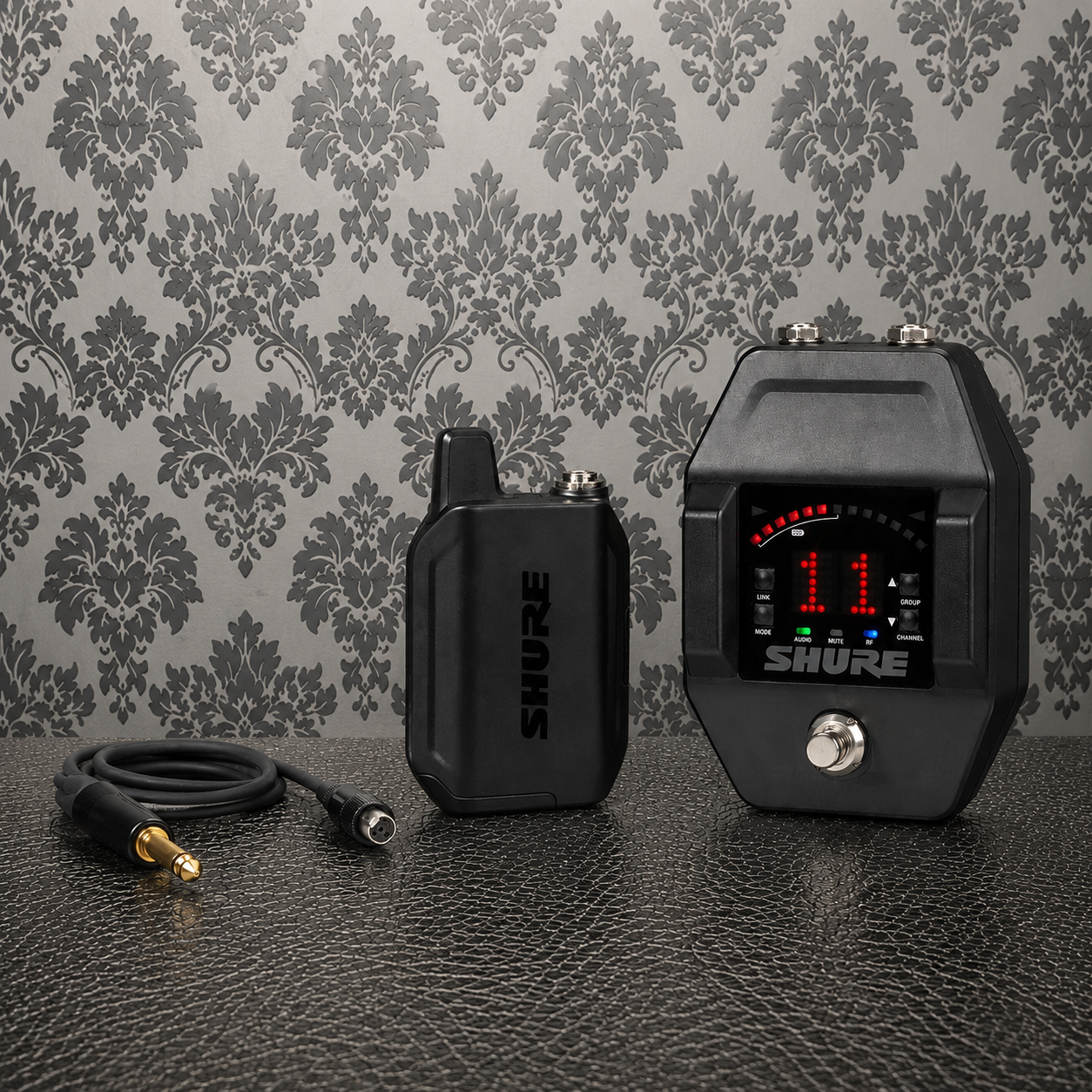

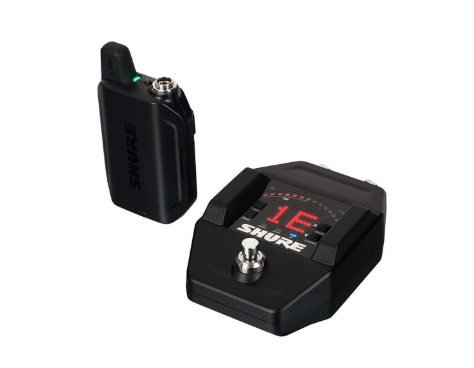

Shure GLXD16+ Digital Wireless Guitar System

The Shure GLXD16+ Digital Wireless Guitar System is a wireless instrument system perfect for guitars and live sound in a variety of settings. This system is highly suitable for small to medium-sized music venues, places of worship, and conference halls, delivering a full, complete guitar sound with the convenience of a wireless setup. Featuring brand-new dual-band wireless technology, the GLX-D+ scans for the cleanest possible channels within both the 2.4GHz and 5.8GHz bands for stable and interference-free performances, every time.

The GLX-D+ system also offers automatic pairing between transmitters and receivers, making it incredibly convenient for traveling performers or events with rapid changeovers—just plug in and play! A redesigned rechargeable lithium-ion battery offers up to 12 hours of continuous use on a single charge, plus a fast-charge function that provides 1.5 hours of use after just 15 minutes of charging. Included in this system is the WA305 wireless instrument cable, allowing you to connect directly from guitar to bodypack. This eliminates the need for long, trailing cables without compromising on sound quality.

Specifications

General system

• System type: GLXD16+ digital wireless guitar system
• Included receiver: GLXD6+ guitar pedal receiver
• Included transmitter: GLXD1+ bodypack transmitter
• Send Mode: Shure Digital Proprietor
• Vocal cord width (Z2): 2400 - 2483.5 MHz
• Voice bandwidth (Z3): 2400 - 2483.5 MHz and 5725 - 5850 MHz
• Voice bandwidth (Z4): 2400 - 2483.5 MHz and 5725 - 5875 MHz
• Voice bandwidth (Z5): 2400 - 2483.5 MHz and 5725 - 5825 MHz
• RF output power: maximum 10 mW EIRP
• Operating temperature range: 0°C to 50°C
• Audio frequency response: 20 Hz - 20 kHz
• Dynamic range: 120 dB A-weighted
• RF sensitivity: typically -88 dBm
• Total harmonic distortion: typically 0.02%
• Battery life: up to 11.5 hours
• Number of channels: up to 4 typical, 8 optimal
• Number of channels (2.4 GHz only): up to 4 typical, 5 optimal
• Voice accuracy: ±1 cent
• Tuning range: F#0 to C8

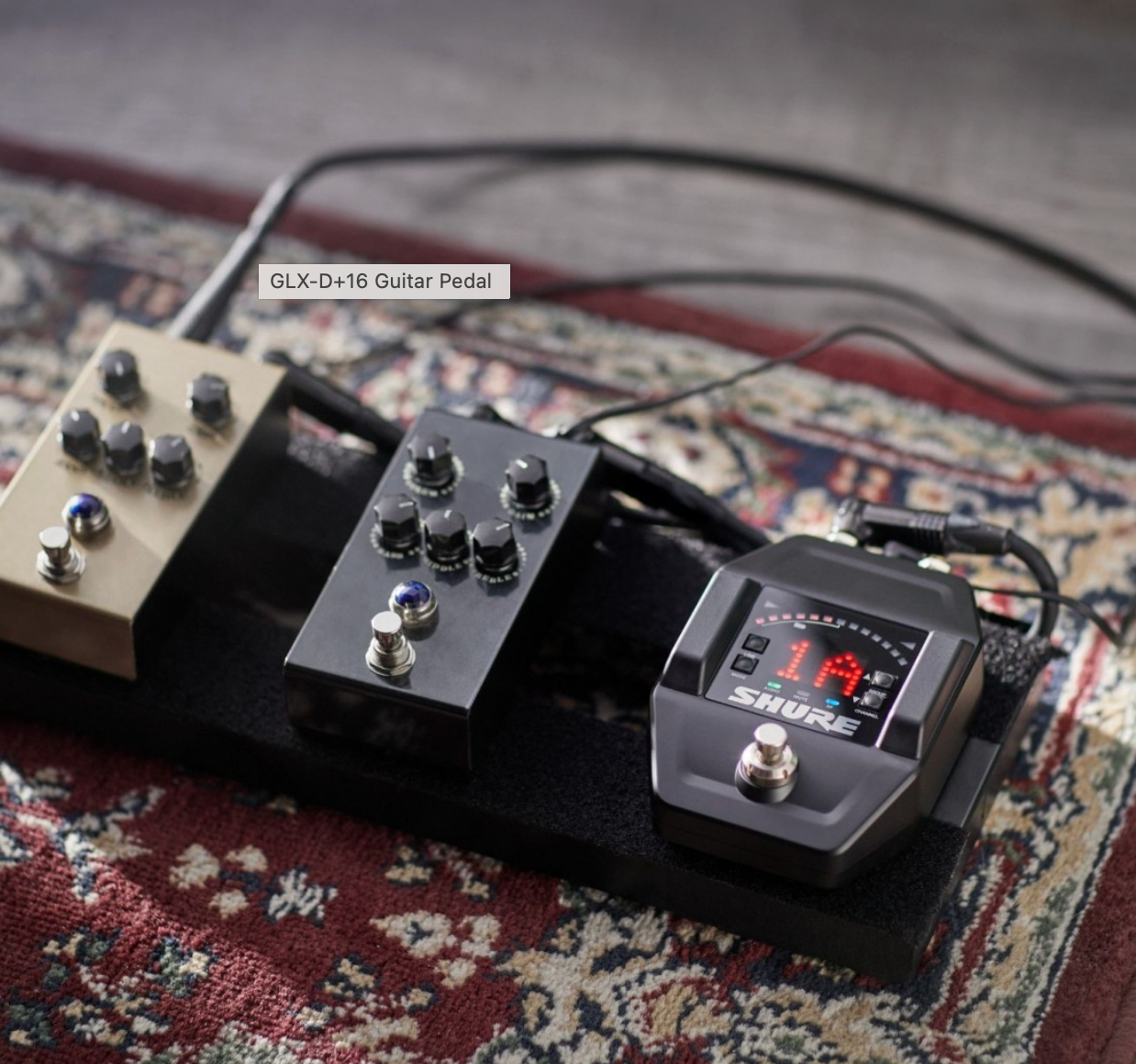

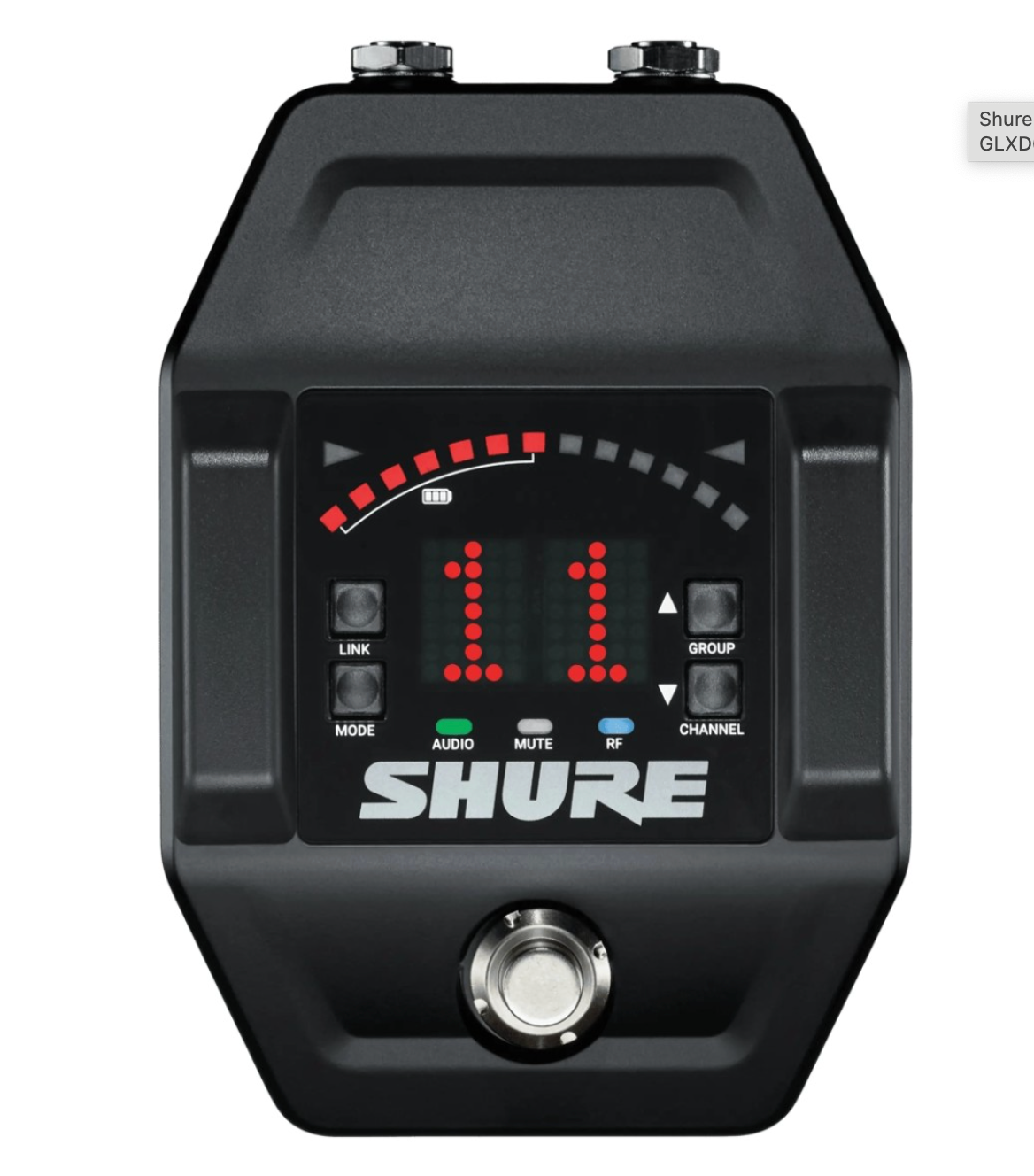

GLCD6+ receiver

• Current requirements: 9 V - 15 V DC, 400 mA
• Antenna type: dual-band PIFA
• Dimensions (W x D x H): 138mm x 95mm x 48mm
• Weight: 0.56 kg
• Housing: aluminum alloy
• Suppression of unwanted signals: typically >35 dB
• Gain adjustment range: -20 dB to +40 dB in 1 dB increments
• Audio input modes: Tuner or True Bypass
• Output configuration: 6.35 mm (1/4") output, impedance-balanced
• Output impedance: 100 Ω (50 Ω unbalanced)
• Maximum audio output level: +8.5 dBV into a 3 kΩ load
• Output connector pin assignment: Point = audio, Ring = no audio, Sleeve = ground
• Receiver antenna input impedance: 50 Ω
• Maximum receiver antenna input level: -20 dBm
• USB port: USB-C for firmware updates
• Instrument input: 6.35 mm (1/4") INSTR IN
• Instrument output: 6.35mm (1/4") INSTR OUT

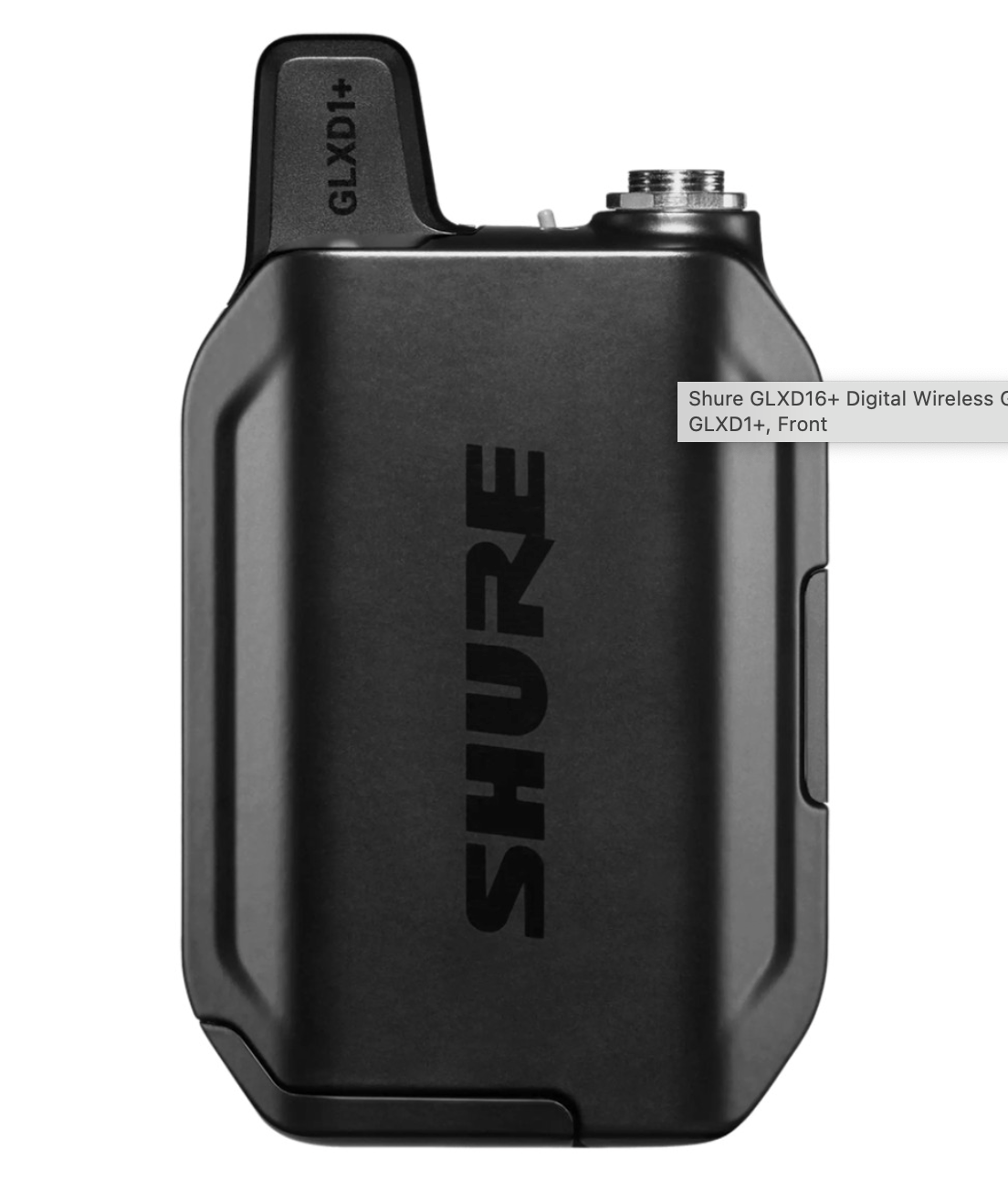

GLxD1+ bodypack transmitter

• Power requirements: Shure SB904 rechargeable Li-Ion battery
• Compatible Charger: SBC10-USBC
• Antenna type: dual-band internal monopole
• Dimensions (W x D x H): 66.94mm x 28.51mm x 115mm
• Weight: 153.1 g without battery
• Housing: aluminum alloy and ABS plastic
• Input impedance: 900 kΩ
• Connector type: 4-pin male mini connector (TA4M)
• Maximum input level: +8.4 dBV (7.5 Vp-p)
• Input configuration: unbalanced
• Pin 1: ground (cable shielding)
• Pin 2: +5 V bias
• Pin 3: audio
• Pin 4: connected to ground via active load (pin 4 of instrument adapter cable is floating)
• Charging port: USB-C

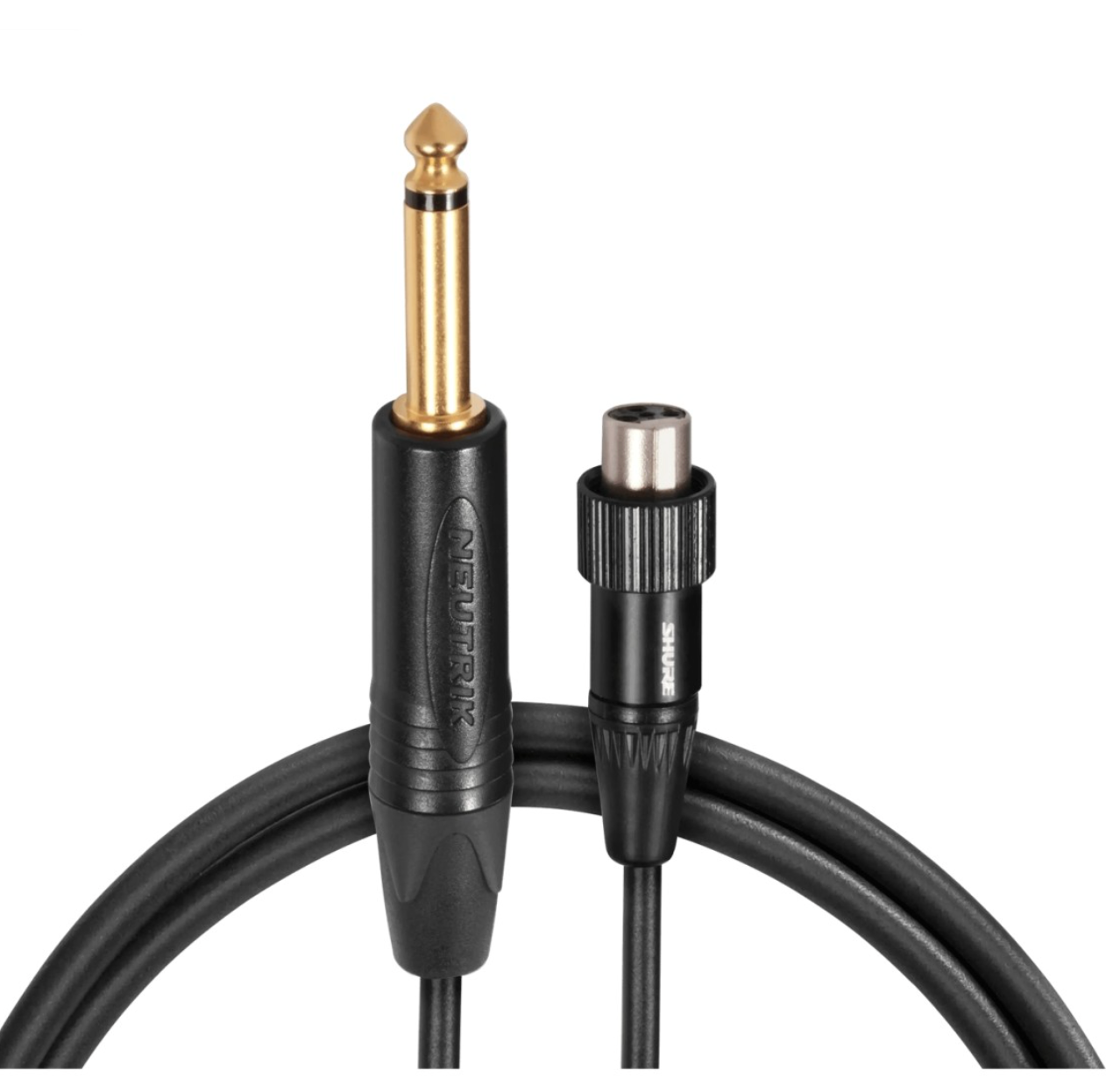

WA305 Premium guitar cable

• Product name: WA305 Premium guitar cable
• Connector type: TQG Threaded connector
• Compatibility: Shure bodypack transmitters with TA4M input

SB904 rechargeable battery

• Battery type: rechargeable Li-Ion
• Nominal capacity: 2420 mAh (8.71 Wh)
• Nominal voltage: 3.6 V
• Dimensions (W x D x H): 20.96mm x 20.80mm x 72.8mm
• Weight: 53.7 g
• Case: PC/ABS
• Charging temperature range: 0°C to 40°C
• Operating temperature range: -18°C to 45°C
